MULTI FUEL UNIVERSAL THERMAL STORE - SFUTS

Code	Price


ECO SFUTS 210 In Stock	£2880.00 ex vat	View
ECO SFUTS 210 PV In Stock	£3180.00 ex vat
ECO SFUTS 250 Despatch Within 3 - 5 Days	£3030.00 ex vat	View
ECO SFUTS 250 PV Despatch Within 3 - 5 Days	£3330.00 ex vat	View
ECO SFUTS 300 In Stock	£3180.00 ex vat	View
ECO SFUTS 300 PV In Stock	£3480.00 ex vat	View

Data Sheet

Installation Guide

Product Fiche

Sizing Guide

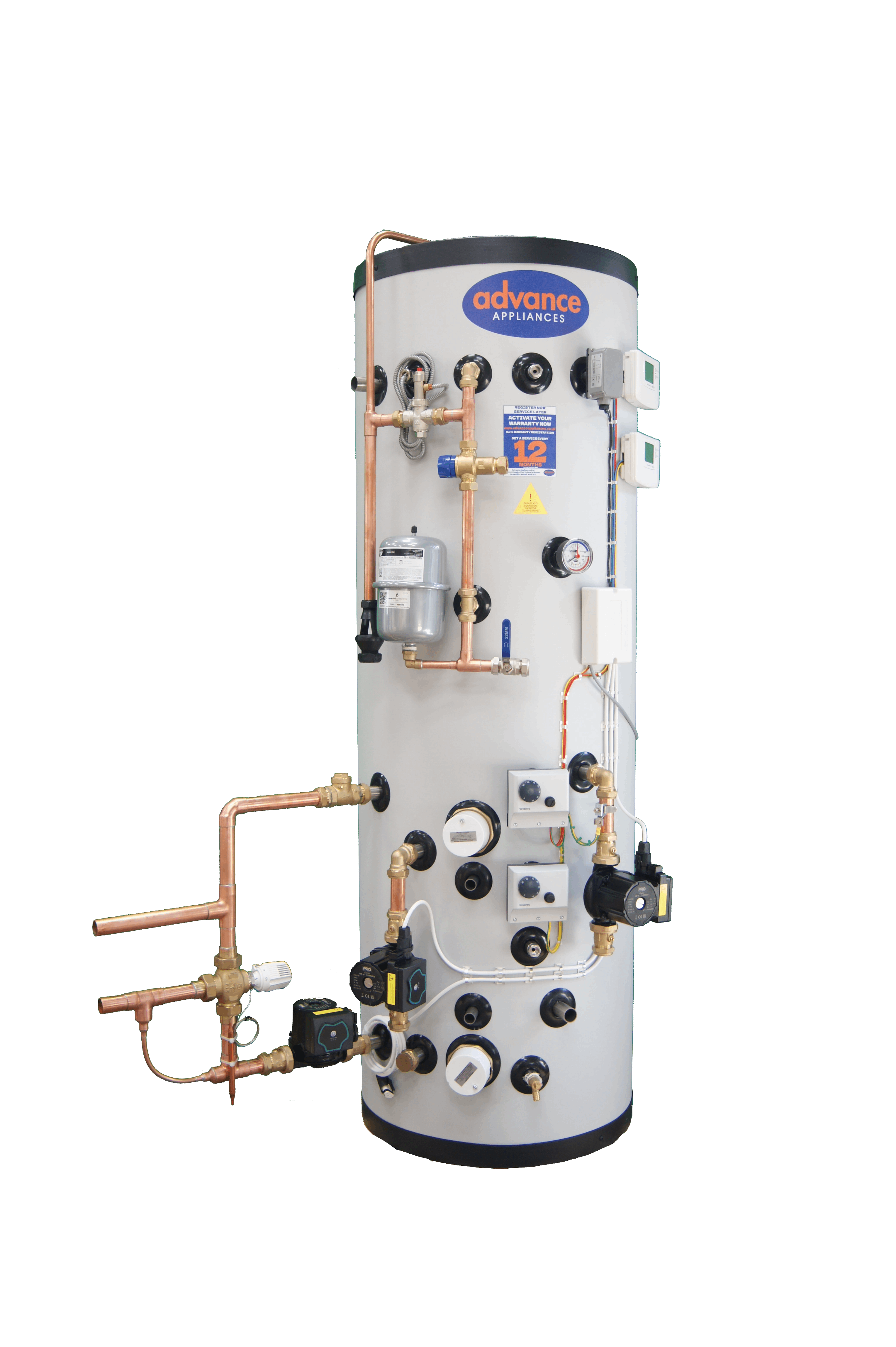

The HETAS listed SFUTS pre plumbed pre wired Universal Thermal Store has been designed to link a number of heat sources including gas or oil boilers, wood burners, and solar thermal or PV as well as electric and other inputs. Everything you see in the picture is included in the price!

The PV version includes a pre-wired solar diverter to the top 3kW immersion heater. The solar diverter can be seen on its own here.

It uses the thermal store principle of storing central heating (primary) water, and is fed without coils from boilers and wood burners for example. This ensures buffering and the resultant efficiencies.

Hot water is safely delivered at mains pressure through a large integral coil for fast bath filling and power showering without a pump. In summer the solar coil, if utilised, will provide most of your hot water needs. In the winter the wood burner, when lit, will handle most of the heating and hot water duties.

Central heating is taken from the store which acts as a buffer for fast radiator or under floor heat up. The store is kept hot by the energy inputs controlled by thermostats. Because the unit is a sealed system it is fine for under floor systems. The primaries are 28mm and can be teed off for two separate circuits if required.

The Universal is safe. As a sealed system it comes fitted with relief valve, a thermal safety valve and tundish is fitted in addition to the hot water pack (as shown here). It meets Part G of the Building Regulations and offers two levels of overheat safety.

The store is stainless steel, UK manufactured and guaranteed for 10 years. It has been independently CE marked and expert assessed to meet G3 Building Regulations.

NOTE - WE HAVE UPDATED THE STORE TO INCLUDE TWO TIMERS - BOTH PRE WIRED SO YOU CAN TIME YOUR BOILER TO STOP NUISANCE OVERNIGHT OPERATION AND YOUR SOLID FUEL PUMP SO YOU CAN KEEP MORE HEAT IN THE STORE AFTER YOU GO TO BED!

CALL US ON 01543 377723 AND FIND OUT WHAT SIZE THERMAL STORE SUITS YOUR NEEDS
